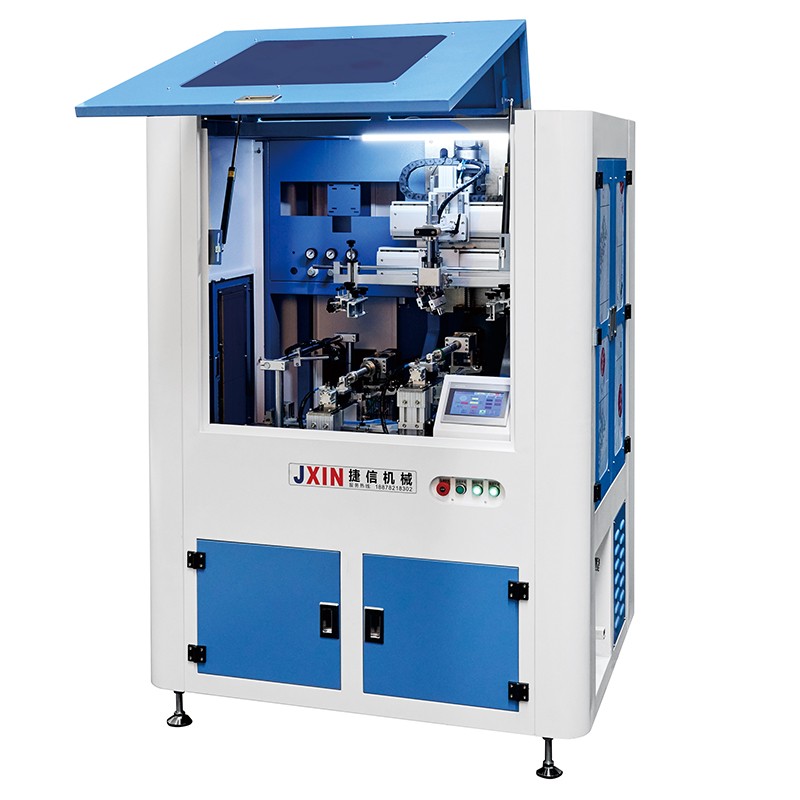

CNC-TK2 Full-Servo Dual-Station Complex Curved Screen Printing Machine
- Product Item : CNC-TK2
- Category： Machines

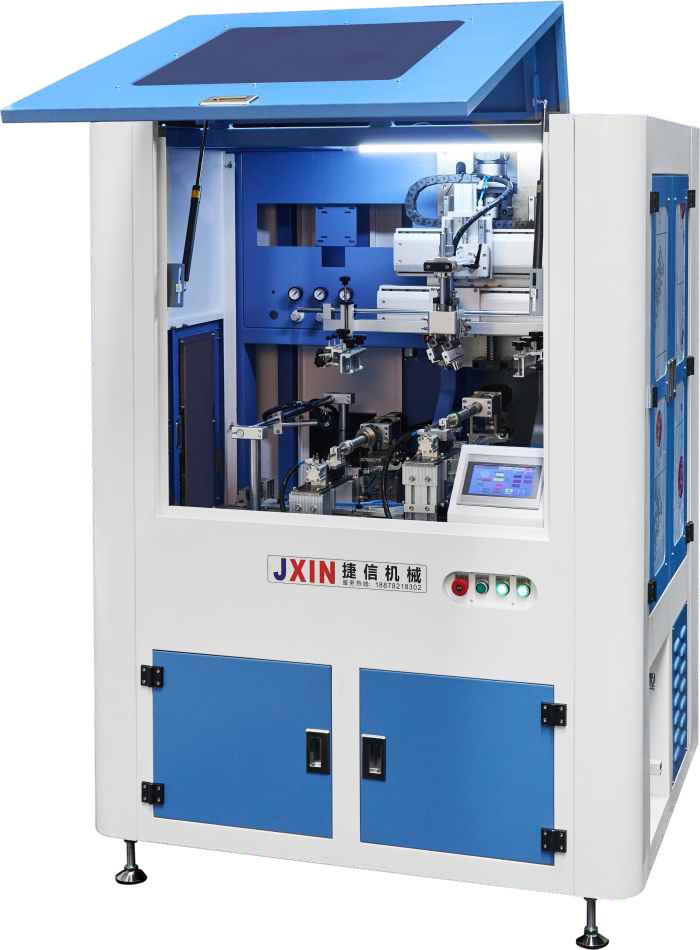

CNC-TK2 Six-Axis Servo Screen Printing Machine
Two stations. More flexibility for your product.
Key features
- Coordinated servo motion: Six servo axes and programmable printing paths for the configured product.
- Recipe-based changeovers: Save product settings for quick and repeatable changeovers.
- Configurable second station: Choose pretreatment or post-treatment to suit your product and printing process.
- Flexible product handling: Feeding and unloading can be tailored to your production requirements.
Technical specifications
| Model | CNC-TK2 |
|---|---|
| Printing colours | Single colour |
| Transfer stations | 2 |
| Servo axes | 6 |

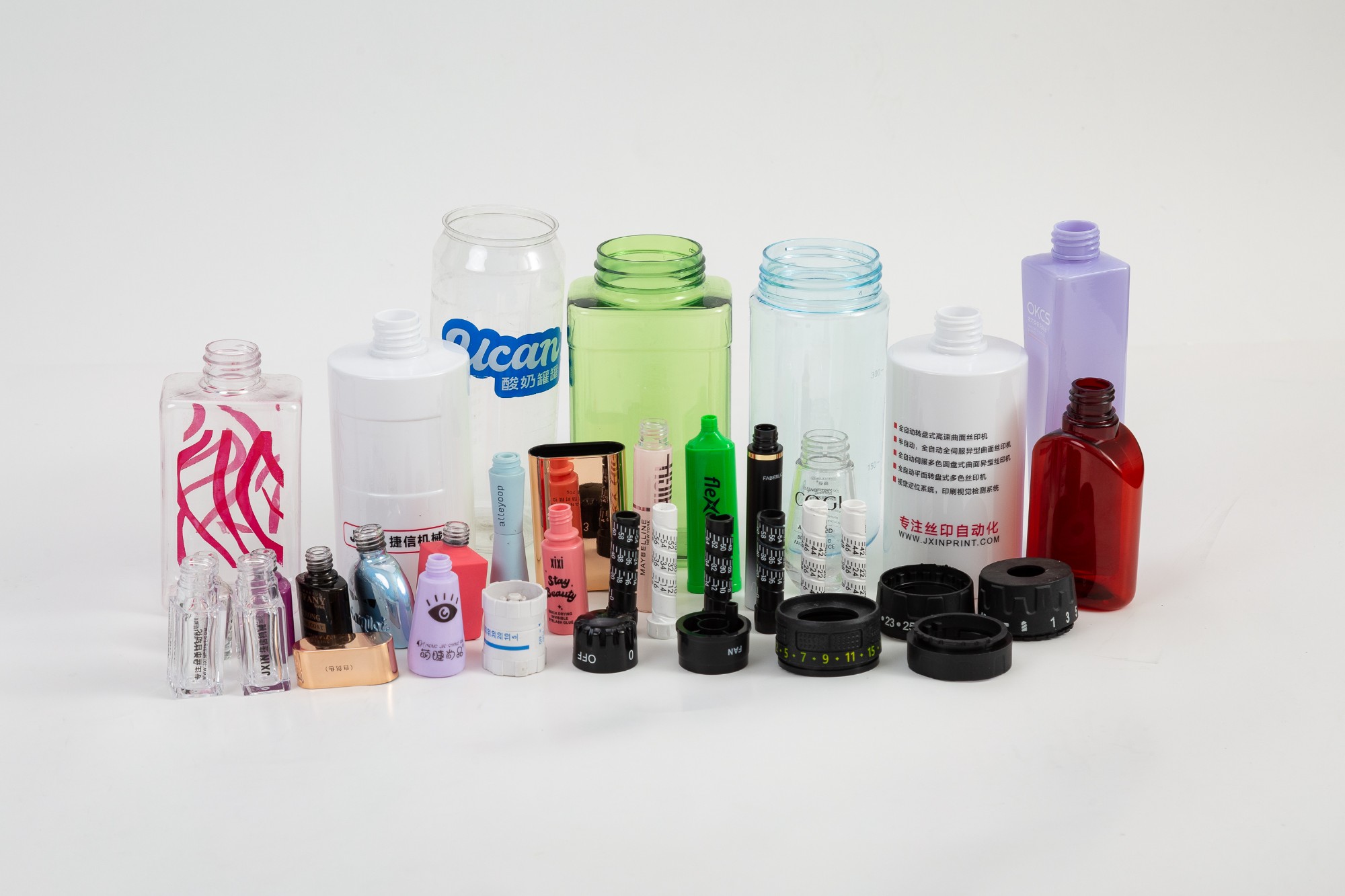

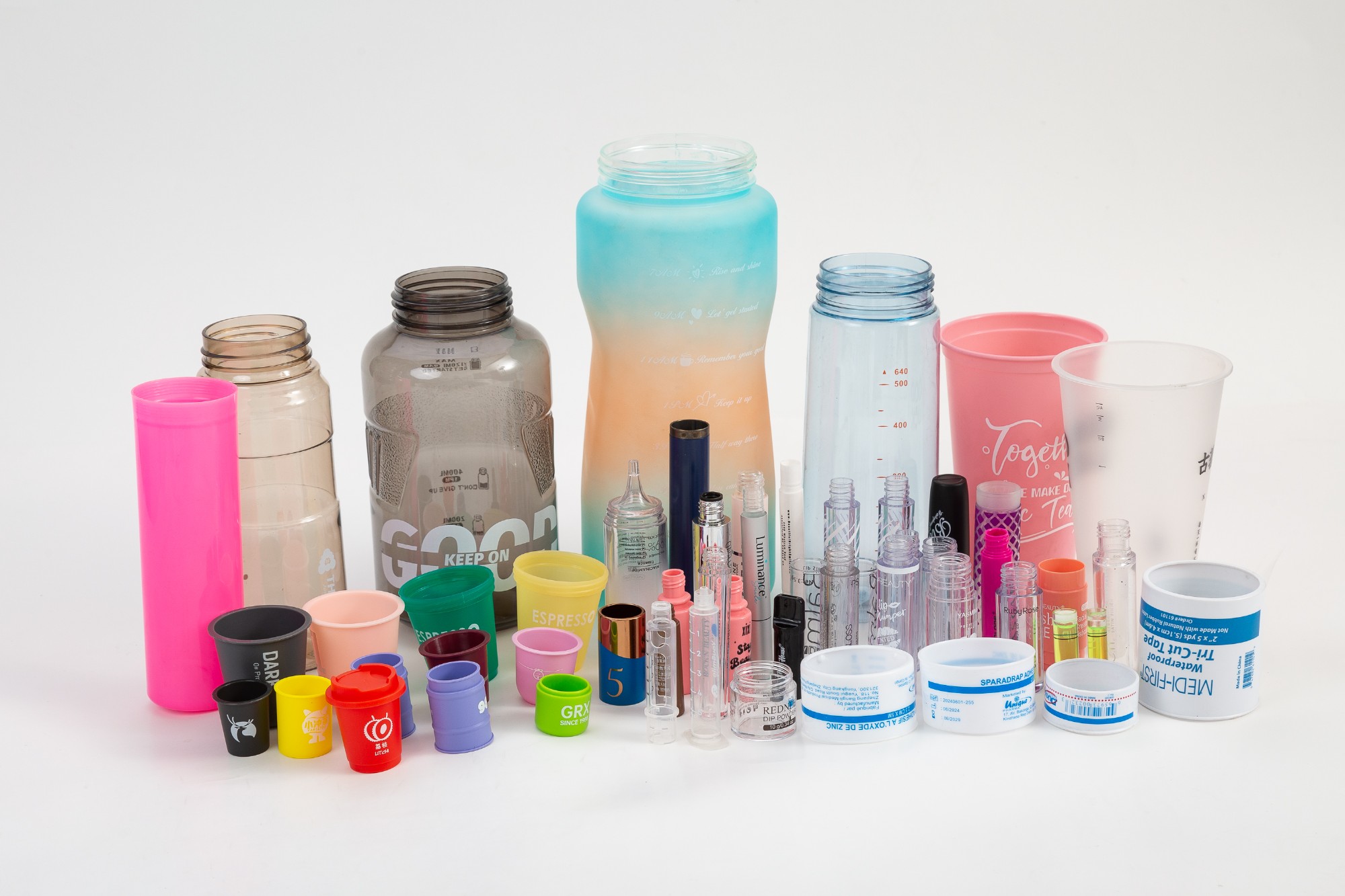

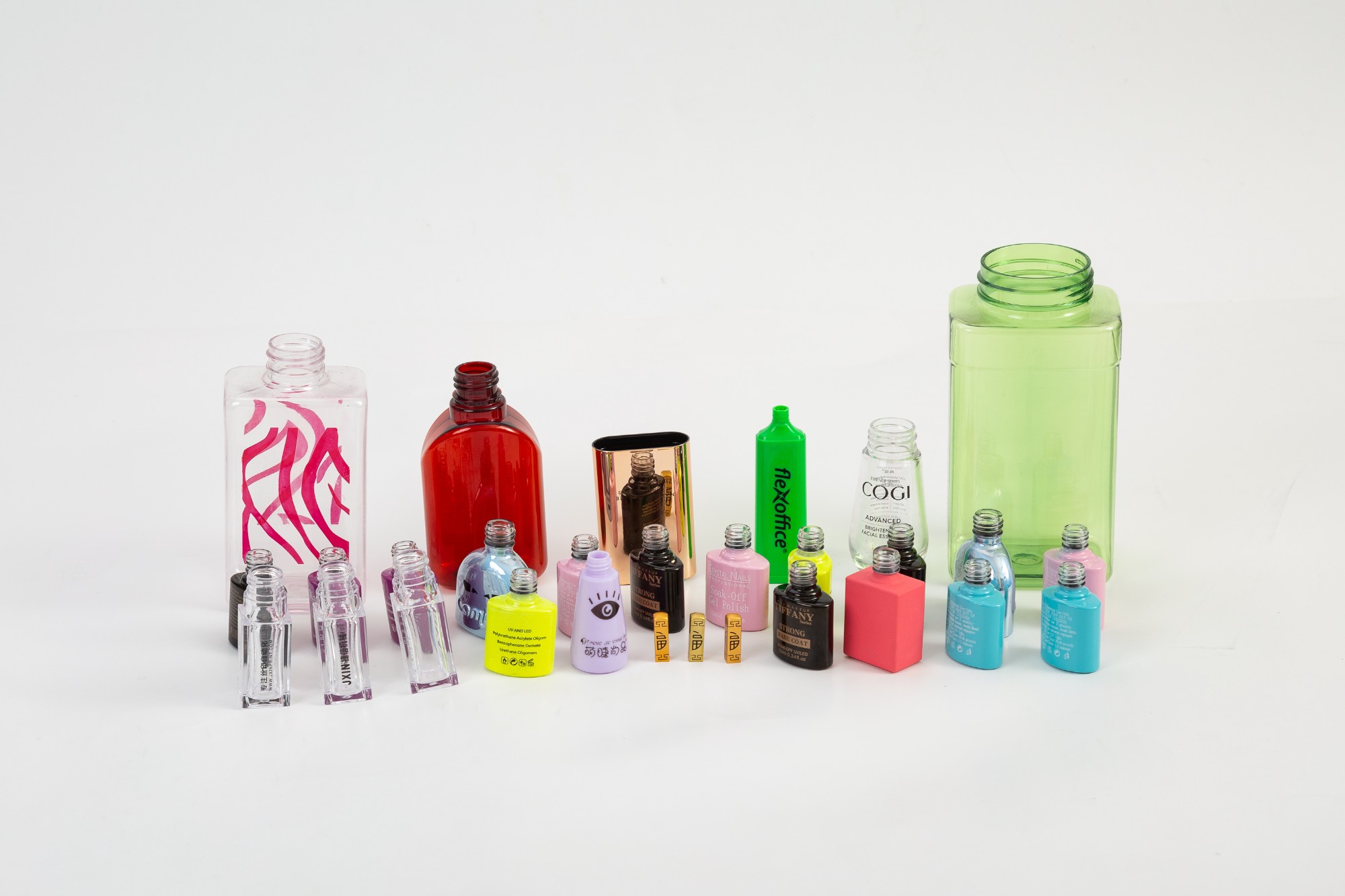

| Round product (reference) | Ø90 mm × 210 mm length |
| Square product (reference) | 60 × 60 × 210 mm |
| Oval product (reference) | 80 × 60 × 210 mm |
| Polygon product (reference) | 80 mm across flats × 210 mm length |
| Reference speed: round | 2,400 pcs/hour |
| Reference speed: square, four sides | 1,500 pcs/hour |
| Reference speed: oval, two sides | 2,000 pcs/hour |
| Power supply / reference power | 220 V / 5 kW |
| Air supply | 5–7 bar |
| UV curing | LED UV, 365 nm |
| Product fixtures | Custom-made to supplied samples |
| Feeding & unloading | Configured for your product |
| Station allocation | 1 printing station + 1 pretreatment OR post-treatment station |
Brochure reference figures. Actual output and suitability depend on your product, artwork and configuration.
Built around your product
Send your physical samples so we can review the process and make dedicated fixtures.
