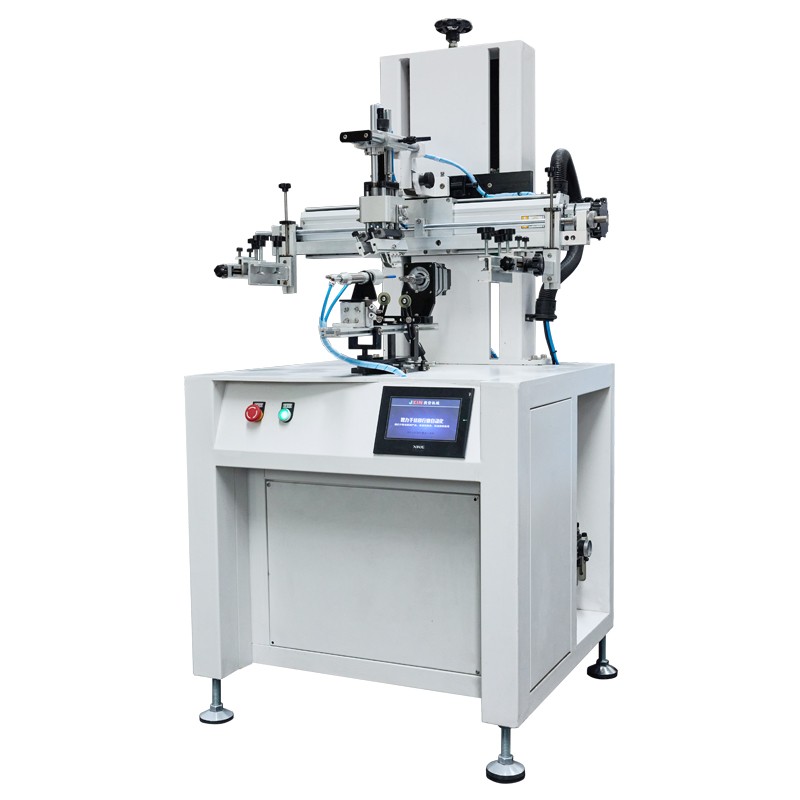

JX-4A Servo Semi-Automatic Curved Surface Screen Printing Machine

JX-4A Servo Semi-Automatic Curved Surface Screen Printing Machine

Product Item : JX-4A
Category： Semi Automatic Screen Printing Machine
INQUIRY EMAIL

Product Detail

Machine Advantages:

· Touch screen + PLC for motion program programming (HMI integration enhances operational flexibility)
· Manual loading/unloading with simplified operation (Reduces operator training requirements)
· Electronic gear function enables free product diameter setting (Digital parameterization replaces mechanical adjustments)
· Ball screw linear module-driven screen arm (ISO Class 7 precision: ±0.02mm repeatability)
· Multi-axis micro-adjustment (front/back ±15°, left/right ±5mm) (Fine-tuning capability for complex registration)
· Taper-adjustable worktable (15°-75° cone angle adaptation for tapered products)

Tags: Servo-driven Synchronization，Rapid Model-switching，Curved-surface Adaptability，Small-batch Precision
