CNC-K2-T Dual-Colour Servo Screen Printing Machine
- Product Item : CNC-K2-T
- Category： Machines
- Product Item : CNC-K2-T
- Category： Auto Servo Screen Printer
- Printing Speed :2500-3000PCS/H
- Printing Area: 200mm*390mm Power : 21KW
- Volt: 380V Air Supply: 5—7BAR
- Workstation: 8PCS
- Product description：2-color screen printing machine for oval glass bottle, 2-color bottle screen printing machine,2-color Automatic screen printer for round glass bottle,2-color Automatic screen print

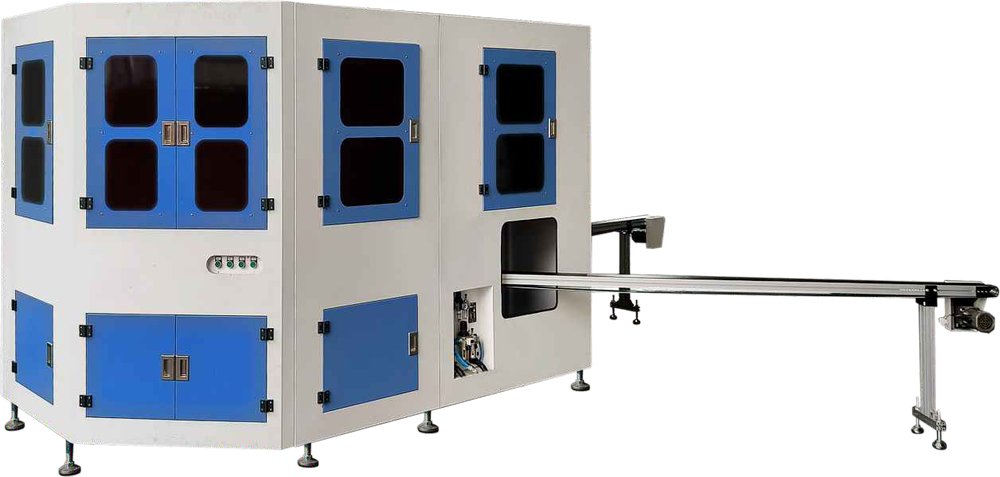

CNC-K2-T Dual-Colour Servo Screen Printing Machine
Two colours. More bottle shapes. One coordinated process.
Key features
- Dual-camera alignment: Positioning by product features helps establish the required print start.

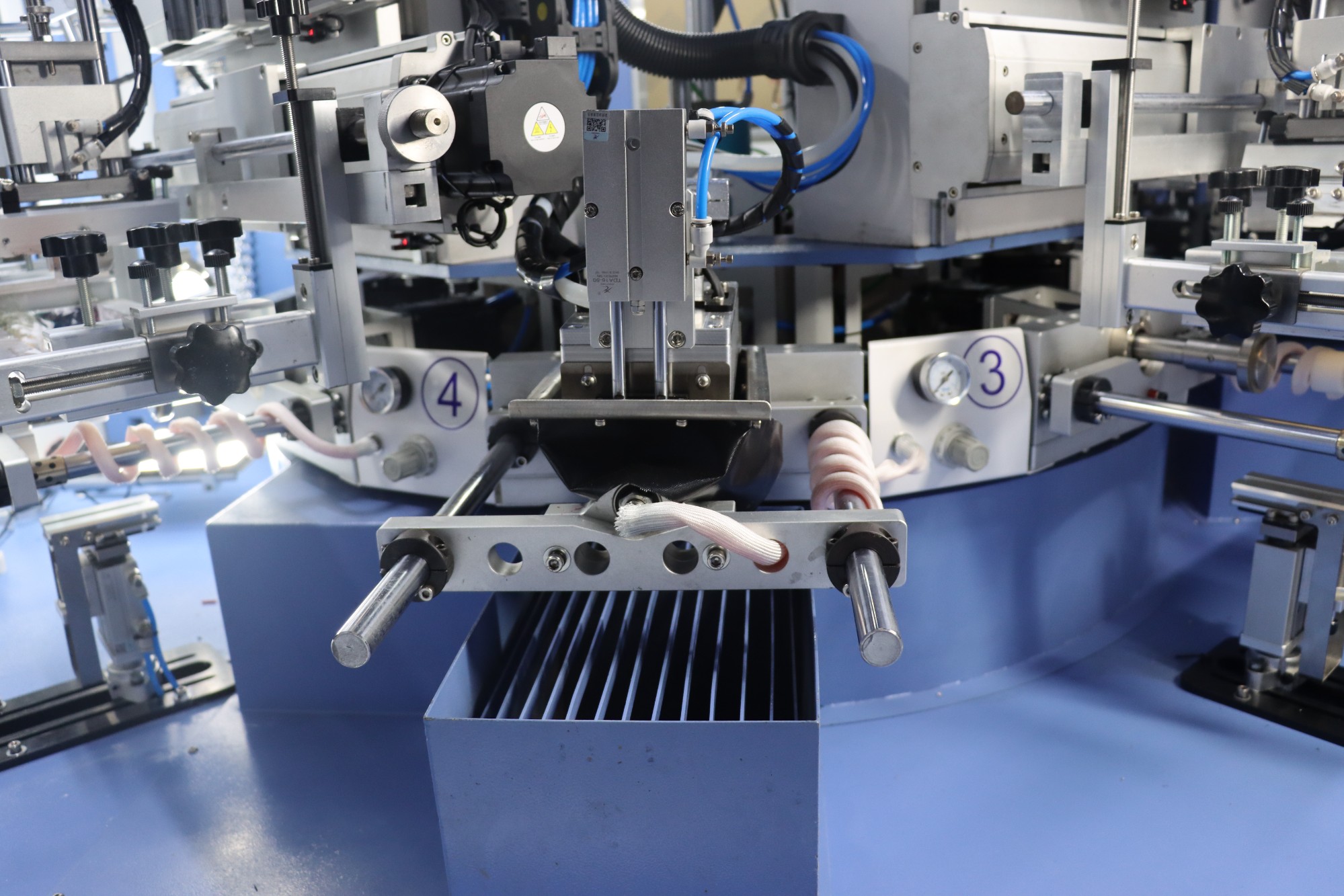

- Servo-controlled printing: Coordinated servo motion supports two-colour decoration on suitable product shapes.
- Recipe-based operation: Save product settings for quick and repeatable changeovers.
- Integrated handling & curing: Feeding, pretreatment, printing, LED UV curing and unloading, configured for your application.
Two-colour production process
- Feed and position the product.
- Print the first colour.
- Cure the first colour.
- Print the second colour.
- Cure the second colour.
- Unload the finished product.
Technical specifications
| Model | CNC-K2-T |
|---|---|
| Printing colours | 2 colours |
| Transfer stations | 8 |
| Round product (reference) | Ø120 mm × 210 mm length |
| Square product (reference) | 85 × 85 × 300 mm |
| Oval product (reference) | 120 × 100 × 300 mm |
| Polygon product (reference) | 120 mm across flats × 300 mm length |
| Reference speed: round | 2,400 pcs/hour |
| Reference speed: square, four sides | 1,500 pcs/hour |
| Reference speed: oval, two sides | 2,000 pcs/hour |
| Positioning | Dual-camera vision |
| Pretreatment | Flame standard; plasma optional |
| Power supply / reference power | 220 V / 5 kW |
| Air supply | 5–7 bar |
| UV curing | LED UV, 365 nm |
| Product fixtures | Custom-made to supplied samples |
| Feeding & unloading | Configured for your product |
Brochure reference figures. Actual output and suitability depend on your product, artwork and configuration.
Built around your product
Send your physical samples so we can review the process and make dedicated fixtures.
