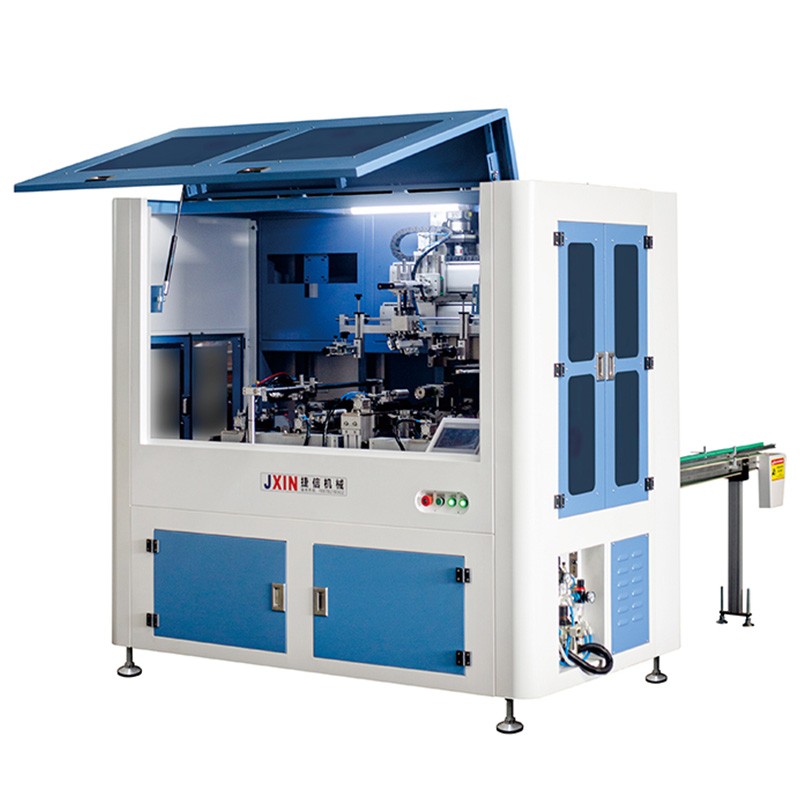

CNC-TK4 Full-Automatic Servo Irregular Curved Surface Screen Printing Machine (4-Station)
- Product Item : CNC-TK4
- Category： Machines

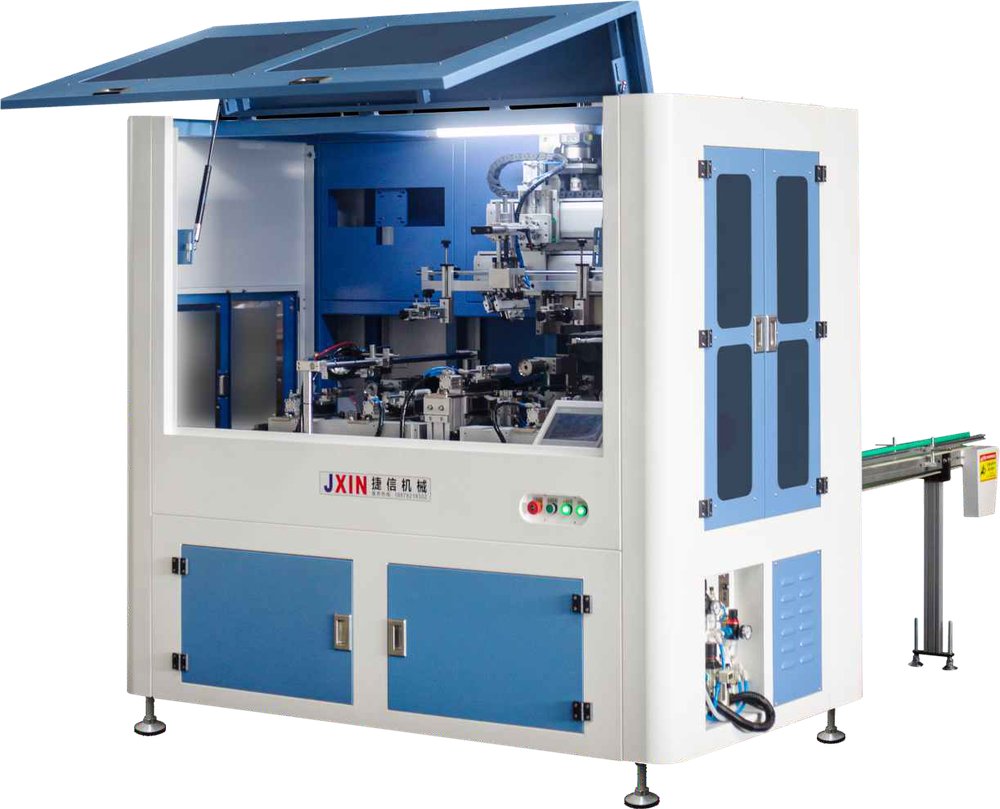

CNC-TK4 Seven-Axis Servo Screen Printing Machine
Four stations. More room for your process.
Key features
- Coordinated servo printing: Seven servo axes coordinate motion for your configured printing cycle.
- Station flexibility: A fixed printing station and available space for suitable process options.
- Repeatable recipes: Save product settings for consistent and convenient changeovers.
- Tailored handling: Configure feeding, printing, unloading and LED UV curing around your product.
Technical specifications
| Model | CNC-TK4 |
|---|---|
| Printing colours | Single colour |
| Transfer stations | 4 |
| Servo axes | 7 |
| Round product (reference) | Ø90 mm × 210 mm length |
| Square product (reference) | 60 × 60 × 210 mm |
| Oval product (reference) | 80 × 60 × 210 mm |
| Polygon product (reference) | 80 mm across flats × 210 mm length |
| Reference speed: round | 2,400 pcs/hour |
| Reference speed: square, four sides | 1,500 pcs/hour |
| Reference speed: oval, two sides | 2,000 pcs/hour |
| Power supply / reference power | 220 V / 5 kW |
| Air supply | 5–7 bar |
| UV curing | LED UV, 365 nm |
| Product fixtures | Custom-made to supplied samples |
| Feeding & unloading | Configured for your product |
Brochure reference figures. Actual output and suitability depend on your product, artwork and configuration.

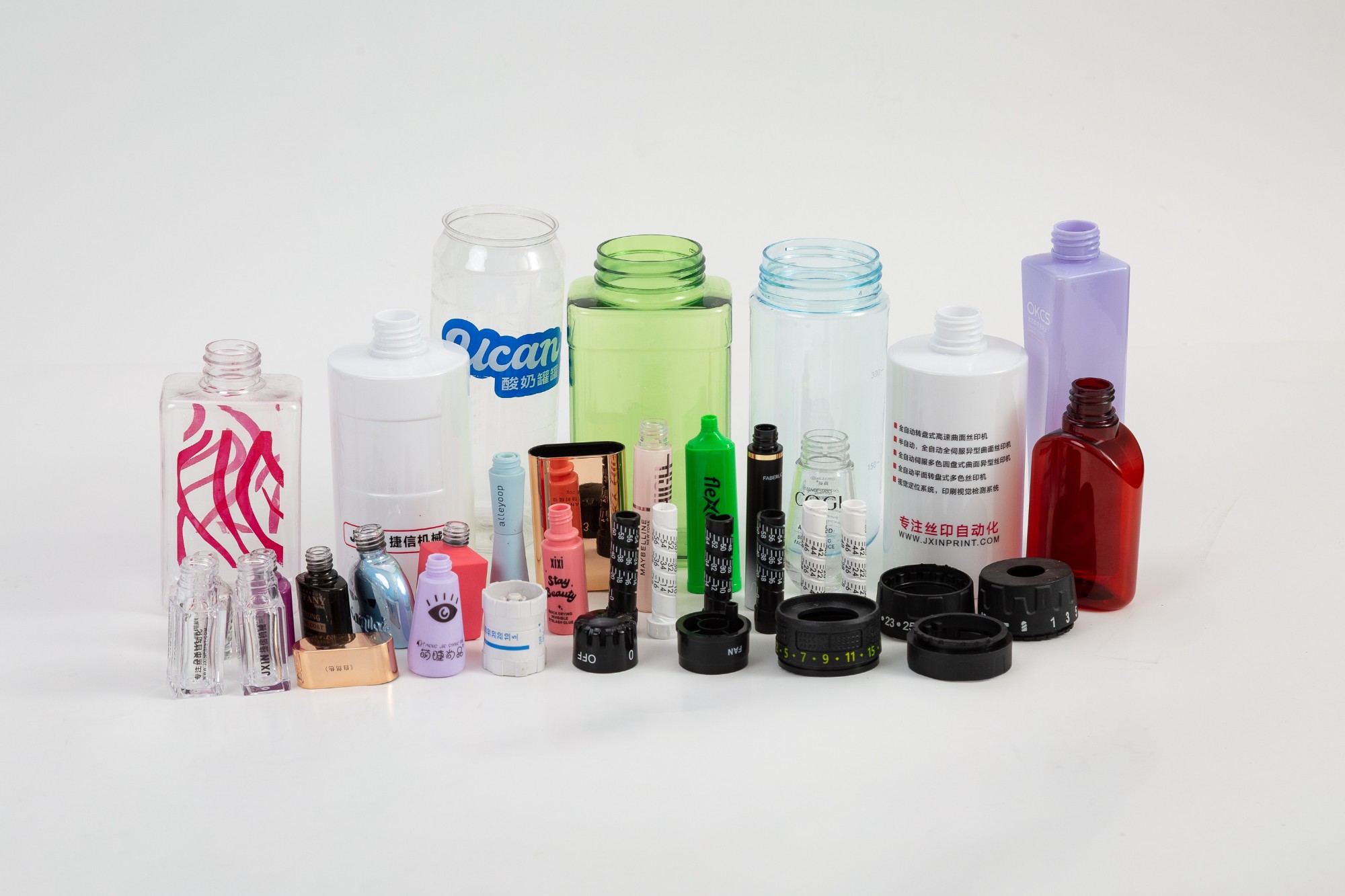

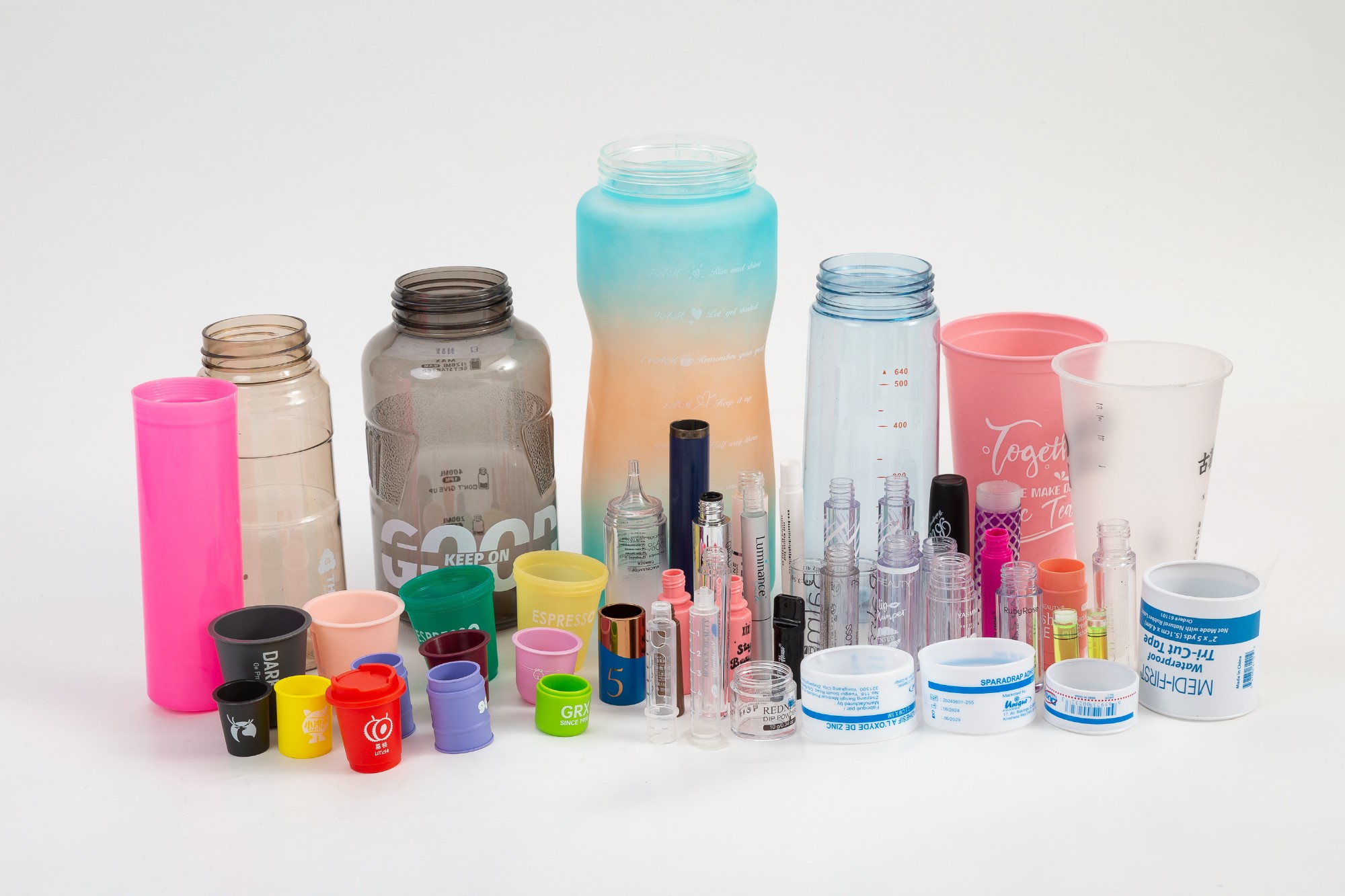

Built around your product
Send your physical samples so we can review the process and make dedicated fixtures.
