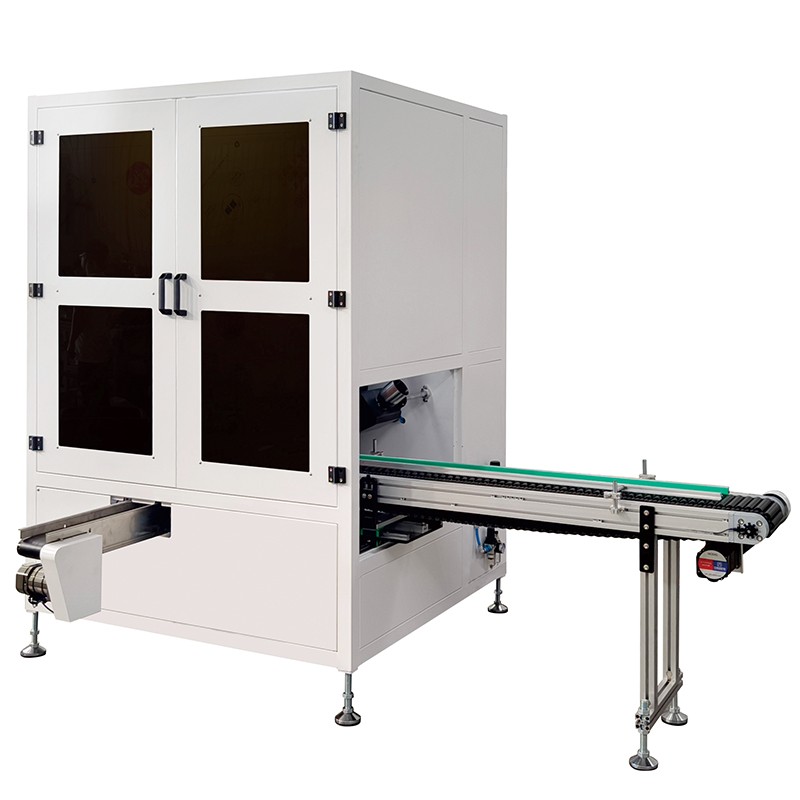

JX-P2 Two-Color Servo Curved Surface Screen Printing Machine
- Product Item : JX-P2
- Category： Machines

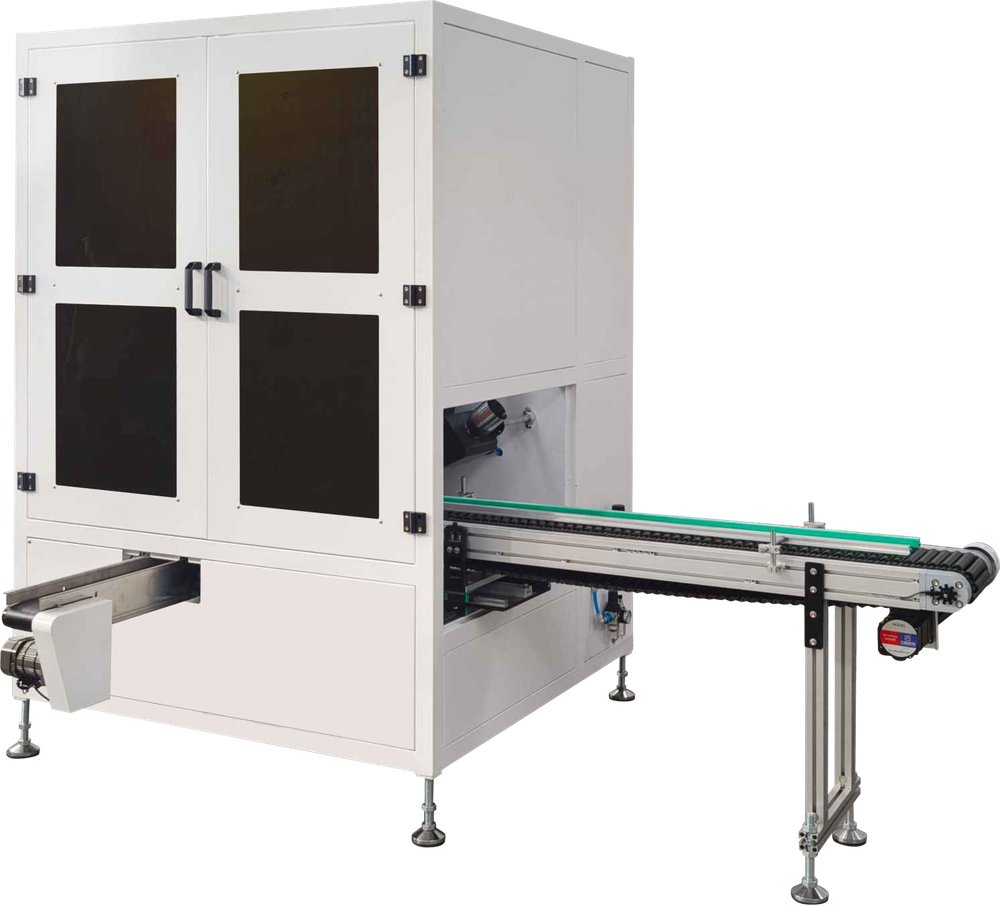

JX-P2 Dual-Colour Servo Screen Printing Machine
Two colours. One automatic production flow.
Key features
- Two colours in one flow: Separate printing stages apply the first and second colours in a coordinated production flow.
- 15-position cam indexing: Fifteen rotary positions support the integrated printing process.
- Servo-controlled printing: Servo control for screen travel and product rotation.
- Enclosed housing with automation: Automatic feeding, printing, curing and unloading in an enclosed machine layout.
Two-colour production process
- Feed and position the product.
- Print the first colour.
- Cure the first colour.
- Print the second colour.
- Cure the second colour.
- Unload the finished product.
Technical specifications
| Model | JX-P2 |
|---|---|
| Printing colours | Single / dual colour |
| Transfer stations | 15 |
| Rotary disc diameter | 800 mm |

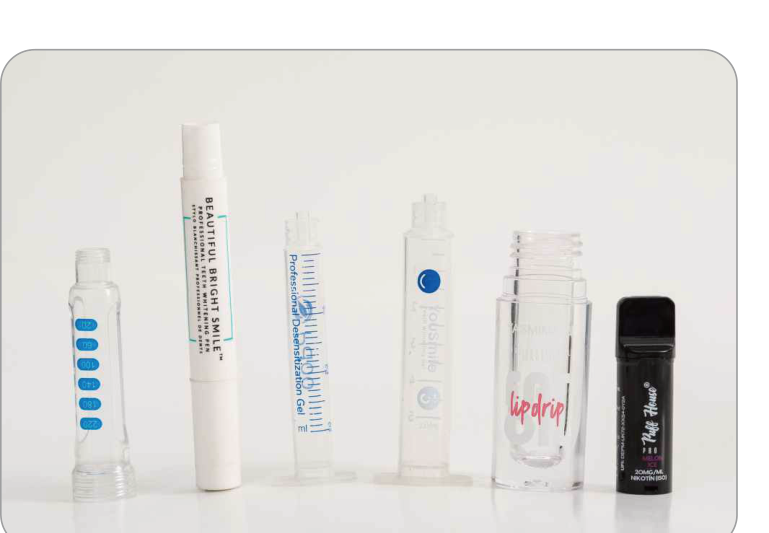

| Product size (reference) | Round tube: Ø25 mm × 120 mm length |
| Reference speed: single colour | 3,000 pcs/hour |
| Reference speed: two colours | 2,500 pcs/hour |
| Screen travel | Servo-driven |
| Product rotation | Servo-controlled |
| Pretreatment | Flame; plasma optional |
| UV curing units / power | 2 sets; total input power 1.8 kW |
| Cooling | Water cooling |
| Power supply / reference power | 220 V / 4.5 kW; 3-phase 380 V optional |
| Air supply | 5–7 bar |
| UV curing | LED UV, 365 nm |
| Product fixtures | Custom-made to supplied samples |
| Feeding & unloading | Configured for your product |
Brochure reference figures. Actual output and suitability depend on your product, artwork and configuration.

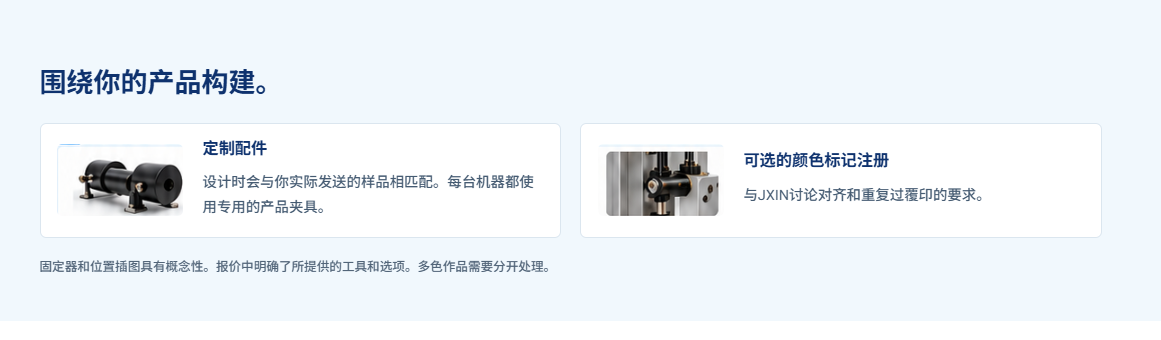

Built around your product
Send your physical samples so we can review the process and make dedicated fixtures.
