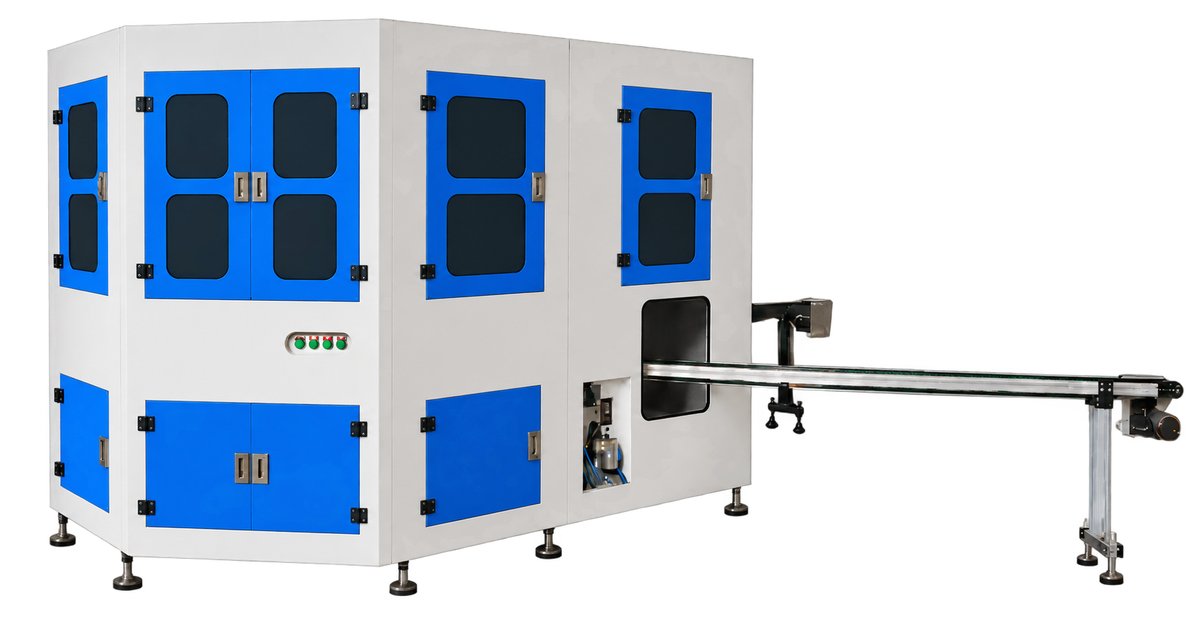

CNC-K3-T Three-Color All-Servo Screen Printing Machine
- Product Item : CNC-K3-T
- Category： Machines
CNC-K3-T Three-Colour All-Servo Screen Printing Machine
One loading. Three colours. More possibilities.
Key features
- Dual-camera alignment: Positioning by bottle bottom and neck features for the configured printing process.
- Three servo printing units: Three servo-controlled screen printing units coordinated in one production flow.
- Recipe-based changeover: Save product settings for quick and repeatable changeovers.
- Integrated handling & curing: Feeding, printing, unloading and LED UV curing, with configuration confirmed for your product.
Technical specifications
| Model | CNC-K3-T |
|---|---|
| Printing colours | 3 colours |
| Transfer stations | 10 |
| Round product (reference) | Ø120 mm × 250 mm length |
| Square product (reference) | 85 × 85 × 250 mm |
| Oval product (reference) | 120 × 100 × 250 mm |
| Polygon product (reference) | 120 mm across flats × 250 mm length |
| Reference speed: round | 3,000 cycles/hour |
| Reference speed: square, four sides | 1,500 pcs/hour |
| Reference speed: oval, two sides | 2,000 pcs/hour |
| Positioning | Dual-camera vision |
| Pretreatment | Flame standard; plasma optional |
| Printing units | 3 servo-controlled printing units |
| Alternative decoration | Two colours + hot foil; application-specific |
| Power supply / reference power | 380 V / 17 kW |
| Air supply | 5–7 bar |
| UV curing | LED UV, 365 nm |
| Product fixtures | Custom-made to supplied samples |
| Feeding & unloading | Configured for your product |
Brochure reference figures. Actual output and suitability depend on your product, artwork and configuration.
Built around your product
Send your physical samples so we can review the process and make dedicated fixtures.
